Peb Mezzanine Building
High-Efficiency Space Utilization Solutions for Warehouses and Factories

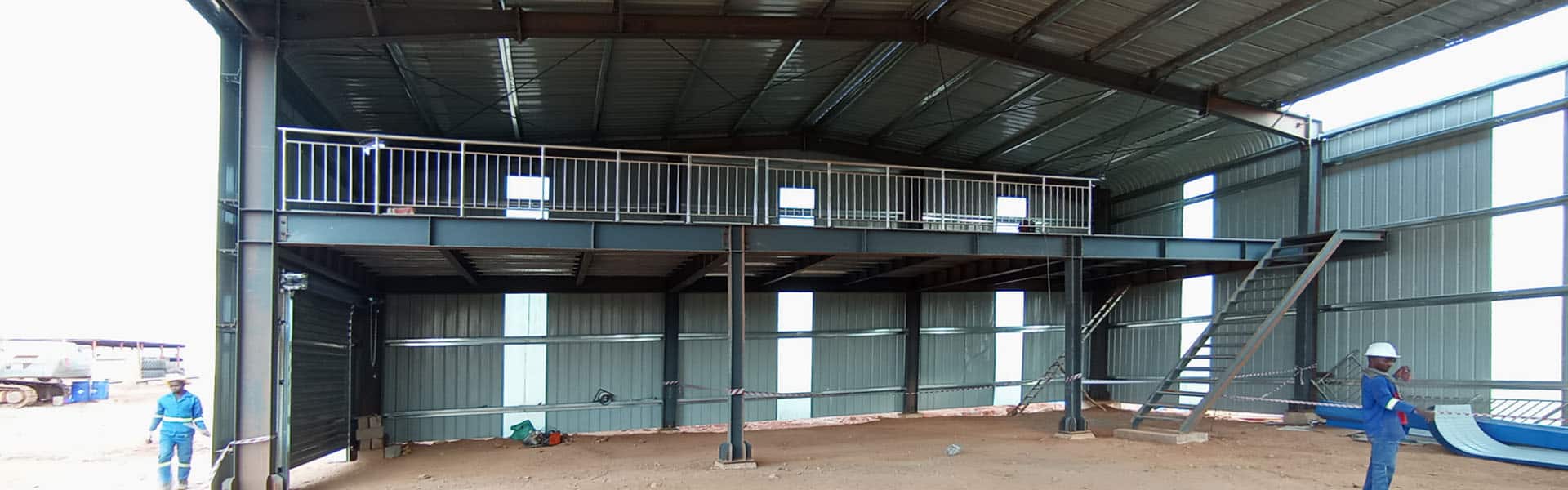

What is a Peb Mezzanine Building?
A Peb Mezzanine Building is a type of pre-engineered steel structure that includes an intermediate floor (mezzanine) inside the building. This design allows you to use vertical space efficiently without increasing land area.
For many businesses in Africa and South America, land cost and construction time are major concerns. A PEB Building with Mezzanine solves both problems by offering a fast, cost-effective, and scalable solution.
A typical mezzanine PEB structure is widely used in warehouses, workshops, factories, and commercial buildings.
Mezzanine PEB Structure-
PEB structure with Mezzanine
-
Pre Engineered Factory Building with Mezzanine
-
Steel Mezzanine Buildings
Why Choose a PEB Building with Mezzanine?
Double Your Space Without Buying More Land
One of the biggest advantages of a Peb Mezzanine Building is that it helps you maximize your existing space. Instead of expanding your building footprint, you can simply build upward.
This is especially useful in Urban areas, Industrial zones and Ports and logistics hubs
Lower Cost Compared to Concrete Buildings
A PEB Building with Mezzanine is significantly cheaper than traditional concrete (RCC) construction.
Steel components are fabricated off-site in controlled environments, using less material waste, reducing on-site labor time. Erection is rapid, as pre-engineered parts slot together like puzzle pieces. For instance, a steel-framed building can be erected 30-50% faster than a concrete structure.
Fast Installation (Save Time, Start Business Earlier)
Time is money. A mezzanine PEB structure can be completed in a much shorter time compared to traditional buildings.
Typical timeline:
- Design: 3–7 days
- Production: 3–4 weeks after we receive the deposit and confirm the drawing with the clients.
- Installation: 4–6 weeks. We will supply the installation drawing, and detailed packing list.
If you need, we can send our engineer to guide the installation.
Flexible Design for Different Business Needs
Architects and structural engineers will make comprehensive designs at the start of the project together. Each steel component’s necessary dimensions, load capabilities, and connecting locations are outlined in these designs. Engineers must calculate things like wind loads,snow load, rain load, roof load, and thermal expansion to assure the structure’s stability. They can be customized for storage, production area, office space, and retail.
You can also expand the building in the future.
Applications of Mezzanine PEB Structure
prefabricated warehouse
Prefabricated warehouse is the most common use of a PEB Building with Mezzanine. The greatest advantage of this structure in the warehousing sector is:
- Store goods on two levels
- Improve inventory management
- Increase storage capacity
office + warehouse combined
When a warehouse needs to serve both storage and office functions, a mezzanine steel structure becomes an ideal solution. It makes efficient use of space while offering strong cost-effectiveness. With this design, the upper level provides additional usable space. Meanwhile, the ground floor continues to function as a dedicated storage area for goods.
Factory and Workshop Buildings
You no longer need to purchase land specifically for constructing office premises; instead, you can simply design a mezzanine level to accommodate office space, packaging operations, or product displays.
The ground floor serves to house production equipment, while the mezzanine functions as the office area. A steel structure incorporating a mezzanine allows for the seamless integration of office administration and workshop production.
Materials Used in Mezzanine PEB Structure
| Component Structure | Material | Technical Parameters |
|---|---|---|
| Main Steel Structure | GJ / Q355B Steel | H-beam, Customized height according to building requirements |
| Secondary Steel Structure | Q235B; Paint or Hot Dip Gavalnized | H-beam, Spans range from 10 to 50 meters, depending on design |
| Roof System | Color Steel Type Roof Sheet / Sandwich Panel | Sandwich panel thickness: 50-150mm Customized size according to design |
| Wall System | Color Steel Type Roof Sheet / Sandwich Panel | Sandwich panel thickness: 50-150mm Customized size according to wall area |
| Window & Door | Color steel sliding door / electric rolling door Sliding Window | Door and window sizes are customized according to design |
| Fireproof Layer | Fire retardant coatings | Coating thickness (1-3mm) depends on the fire rating requirements |
| Drainage System | Color Steel &PVC | Downspout: Φ110 PVC Pipe Water Gutter: Color Steel 250x160x0.6mm |
| Installation Bolt | Q235B Anchor Bolt | M30x1200 / M24x900 |
| Installation Bolt | High-Strength Bolt | 10.9M20*75 |
| Installation Bolt | Common Bolt | 4.8M20x55 / 4.8M12x35 |
Design Considerations for Peb Mezzanine Building
The design of steel-structure mezzanine buildings requires consideration of the following key factors:
- Load Capacity (Very Important): Different uses require different load designs. Different building uses impose distinct requirements on structural load-bearing design. Common application scenarios include offices, warehousing, and heavy machinery operations. Always confirm your load requirement before design.
- Building Size and Height: The length and width of a steel structure can be designed to meet specific requirements. Typically, single-story steel buildings range in height from 6 to 12 meters. While ensuring that your specific needs are met, you may request that the engineers provide you with the most cost-effective design solution—though, naturally, the safety of the steel structure must always be guaranteed.
- Climate Design: A high-quality prefabricated steel structure building (PEB) featuring a mezzanine should give full consideration to the following factors: High-temperature environments → Installation of thermal insulation layers / Environments with heavy rainfall → Implementation of a sound drainage design / Coastal regions → Application of rust-proofing and anti-corrosion treatments
- Ventilation System: A robust ventilation system is designed to reduce indoor heat and maintain fresh air. Common design elements include roof ventilators, wall-mounted louvers, and designs that guide natural airflow.
- Mezzanine Floor Options: Common mezzanine flooring solutions include: steel deck + concrete, steel plate, and purlin + cement board. You simply need to make a selection based on your specific requirements.
Cost Guide for PEB Building with Mezzanine
The cost of a Peb Mezzanine Building depends on:
- Size of the Building: Generally, the larger the scale of a building, the more cost-effective the unit price becomes. As the total floor area expands, fixed costs are amortized over a larger base, resulting in a significant reduction in the cost per square meter.
- Mezzanine Area: The extent of the mezzanine coverage directly impacts the overall cost. A full mezzanine (a design covering the entire floor area) entails higher costs than a partial mezzanine, as it necessitates a corresponding increase in both structural materials and construction volume.
- Load Requirements: Load standards determine the structural safety rating of a building. Higher load requirements demand steel of greater strength; consequently, the overall construction cost will rise accordingly.
- Material Selection: Different envelope materials present varying cost implications and performance characteristics. While the initial cost of insulated sandwich panels may be slightly higher, they significantly enhance indoor temperature control and user comfort, making them a highly cost-effective choice in the long run.
The Construction Process for KHOME’s Prefabricated Steel Structure Buildings
Design and Engineering
At the beginning of each project, architects and structural engineers collaborate to produce detailed drawings and structural plans.
These designs outline the dimensions, connection points, and load capacities of every steel component.
Engineers also perform detailed calculations to account for environmental loads, such as: Wind load ,Snow and rain load ,Roof live load ,Thermal expansion
Material Procurement
Our experienced procurement team sources high-grade structural steel plates, beams, and columns, ensuring materials comply with international quality standards.
All materials are inspected for structural integrity and quality before entering the fabrication workshop.
Fabrication
Fabrication is where raw steel becomes customized components for Steel Frame Buildings. Key steps include:
- Cutting: Precision laser cutting ensures accurate dimensions.
- Shaping: Steel is bent, punched, or rolled into required profiles.
- Welding: We use J427 or J507 welding rods, which produce clean seams without cracks or defects—essential for maintaining structural integrity.
- Surface Treatment: Shot blasting is applied to remove rust and meet Sa2.5 standards, enhancing surface roughness for improved paint adhesion.
Marking and Transportation
Each steel part is clearly marked and photographed, making site assembly efficient and foolproof.
Our packaging process maximizes container space and minimizes shipping costs by planning the loading sequence in advance.
customized Peb Mezzanine Buildings according to your application
K-HOME’s prefabricated steel structure buildings have been successfully implemented in numerous countries and regions worldwide, including African markets such as Mozambique, Guyana, Tanzania, Kenya, and Ghana; the Americas such as the Bahamas and Mexico; and Asian countries such as the Philippines and Malaysia. We are familiar with diverse climate conditions and approval systems, enabling us to provide you with steel structure solutions that combine safety, durability, and economy.
Contact our customer service team today, and we will dedicate ourselves to creating a customized Peb Mezzanine Building perfectly suited to your needs.
If you provide the following information, we will provide you with a more accurate product quote.
About K-HOME
——Pre Engineered Metal Building Manufacturers China
Henan K-home Steel Structure Co., Ltd is located in Xinxiang, Henan Province. Established in the year 2007, registered capital of RMB 20 million, covering an area of 100,000.00 square meters with 260 employees. We are engaged in prefabricated building design, project budget, fabrication, installation of steel structure and sandwich panels with second-grade general contracting qualification.
Custom size
We offer customized prefabricated steel structures in any size, perfectly matching your multiple requirements.
free design
We provide free professional CAD design. You don’t need to worry about unprofessional design affecting building safety.
Manufacturing
We select high-quality steel materials and use advanced processing techniques to ensure the creation of durable and robust steel structure buildings.
installation
our engineers will customize a 3D installation guide for you. You don’t need to worry about installation problems.
How long does a Peb Mezzanine Building last?
Normally 50 years for steel frame or more with proper maintenance.
Can I install a mezzanine later?
Yes, but it is better to design it from the beginning for better cost and safety.
Is it suitable for hot climates like Africa?
Yes, with insulation and ventilation design.
Do you provide installation guidance?
Yes, drawings and remote support are usually provided.
