Clear Span Metal Building: The Complete Guide
Clear Span Metal Steel Buildings | Can be used in Industrial, Commercial, Agriculture, and Residential Buildings.
Before understanding “clear span metal building,” it is necessary to clarify two fundamental concepts: span vs. clear span

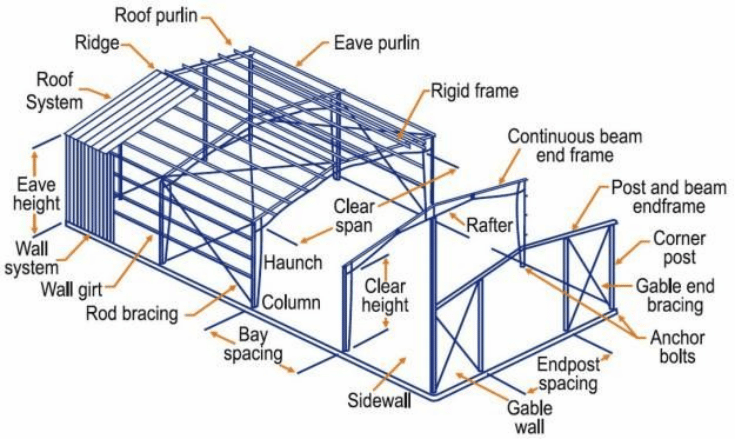

Span refers to the horizontal distance between two adjacent load-bearing members (such as columns, beams, or walls) in a building. It is a basic parameter for measuring the spatial scale of a structure.
Clear span, on the other hand, refers to the actual unobstructed clear width available within the above span, after excluding all intermediate obstructions such as walls, columns, or other structural elements. It directly reflects the effective usable space within the building interior.
What Are The Clear Span Metal Buildings?
Clear span metal buildings are a kind of pre-engineered steel building.

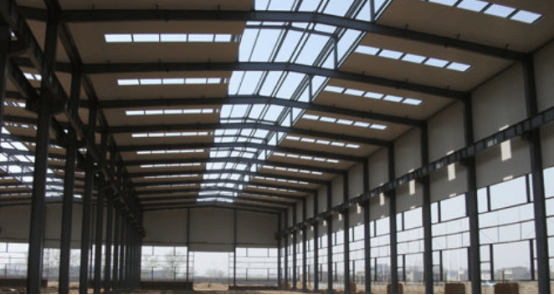

Its key feature is the free internal support columns, thereby creating a completely unobstructed, enclosed interior space.
This column-free design maximizes usable floor area, providing an open and continuous indoor environment.
Clear span steel buildings are highly popular for applications requiring large, flexible spaces. They are widely used for warehouses, logistics and storage facilities, industrial manufacturing plants, and various large-scale event venues.
The durability of metal structure makes it available to choose clear span metal buildings, K-Home supplied various clear span buildings at affordable prices. Now it has been the best seller on our product list. In the past few years, the K-Home team update the design and manufacturing process and method and done much for steel building development.
To date, K-HOME’s prefabricated steel structure buildings have been successfully implemented in numerous countries and regions worldwide, including African markets such as Mozambique, Guyana, Tanzania, Kenya, and Ghana; the Americas such as the Bahamas and Mexico; and Asian countries such as the Philippines and Malaysia. We are familiar with diverse climate conditions and approval systems, enabling us to provide you with steel structure solutions that combine safety, durability, and economy.
What are The Span and Length of The Clear Span Steel Structure?
Standard clear span buildings are 6 to 30 meters (20–100 feet) in width and 10 to 60 meters (30–200 feet) in length.
In our design practice, a span of around 20 meters achieves the best balance of structural safety and cost-effectiveness, making it the most economical choice for typical projects.
When the width exceeds 30 meters, the structure is classified as a large-span steel building. Such projects require customized engineering design.
To ensure overall stability and safety, we typically adopt dual-span or multi-span configurations. These approaches effectively distribute loads and minimize deflection, while maintaining construction feasibility.

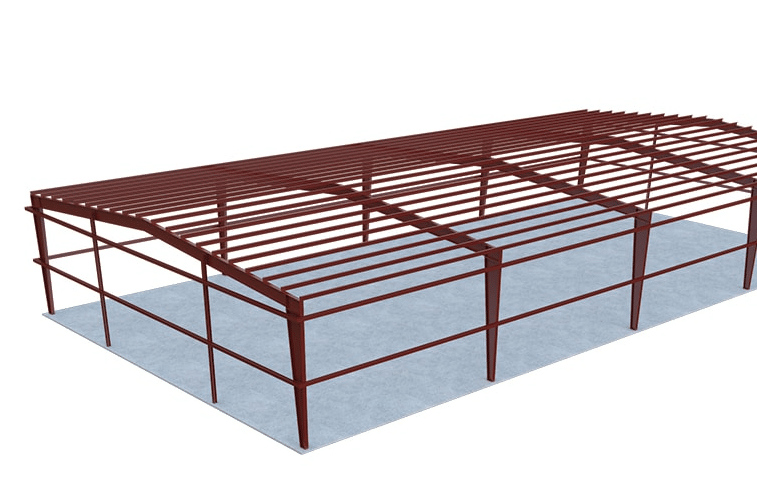

Frame Styles of Clear Span Metal Buildings
Tapered Column Clear Span -
Straight Column Clear Span -
Straight Single Slope Clear Span -
Tapered Column Double Span -
Straight Column Double Span -
Straight Column Multiple Span
The tapered-column clear span rigid frame structure employs tapered columns and rafters. By gradually varying the cross-sectional dimensions along the height to align the column’s bending moment distribution with its section modulus, steel usage can be reduced by 15%–25%.
Widely used in light steel industrial plants with large spans or high clearances, this design optimizes the distribution of the moment of inertia and enhances bending efficiency.
The straight-column clear-span gable frame structure utilizes constant-depth columns and tapered (variable-depth) rafters, with the roof ridge positioned at the frame’s centerline.
These frames distribute loads evenly and are suitable for workshops with light-capacity cranes (typically under 200 kN or 16 tonnes) or single-story industrial buildings without cranes.
The straight column single slope clear span rigid frame structure features constant-depth columns and either constant-depth or tapered rafters, creating a single-slope roof and a one-sided drainage configuration.
They are suitable for sites requiring strict control over drainage.
Choosing the right type of structural frame depends on the intended use of your building.
A well-designed building frame must meet the requirements regarding the building’s intended function, weight, dimensions, and scale. Therefore, we strongly recommend consulting Khome’s building experts; by sharing details such as local building codes and environmental parameters, we can recommend the specialized steel structural frame best suited to your project.
Top 5 Benefits of Choosing a Clear Span Design
K-HOME’s column-free steel structure building kits offer advantages such as robustness, durability, flexible design, and ease of installation. Clear span steel structures provide architects, contractors, and owners with an economical and reliable solution for constructing warehouses and factories.
Durability
The clear span building material is calculated based on international standards.
All the materials are tested and approved by the official building department, so it can resist 12 level grade earthquakes.
Flexible Design
Steel structure buildings are a type of customized structure, designed according to actual needs. The large open-plan design of the clear span structure avoids column interference, and the internal layout is more flexible, suitable for diverse needs such as commercial and industrial applications.
Easy Installation

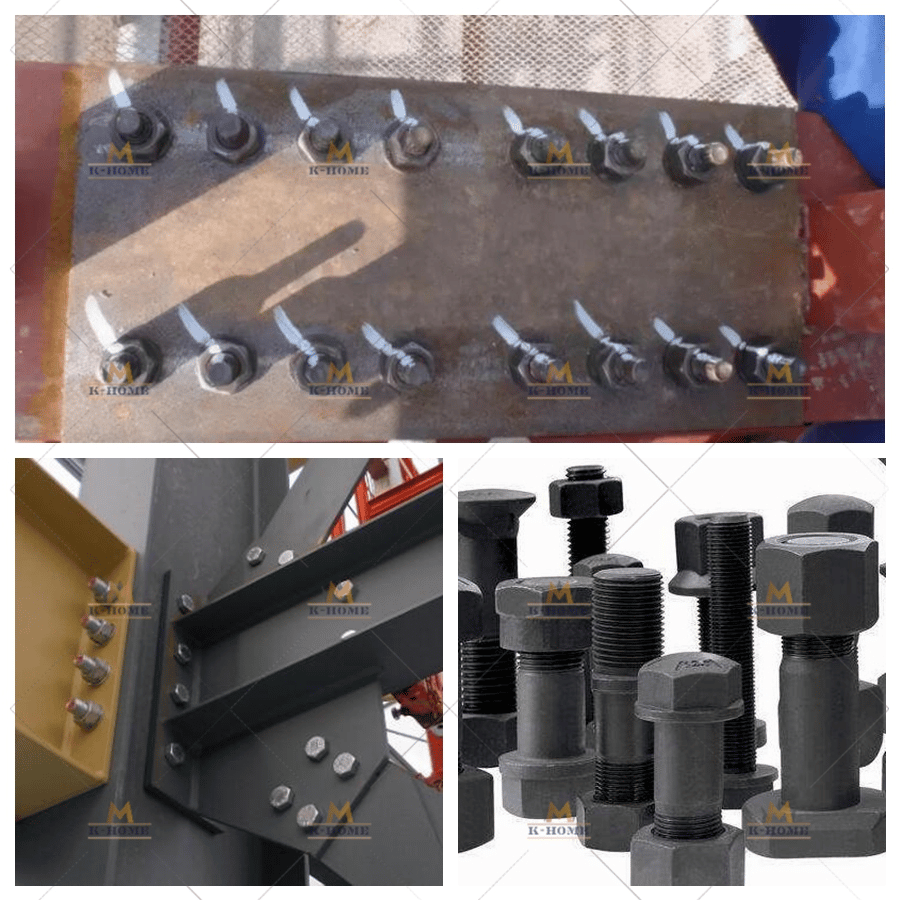

All house materials are connected by screws and bolts, when you receive the cargo, only need to install according to the installation files.
PS: We have a professional support team to guide you to set the building.
Economical
Since no need for supporting columns, the construction speed is fast. Which means less cost of building materials.
With clear span steel buildings, you don’t have to worry about maintenance. It’s almost maintenance-free.
Design & Customized Options of Clear Span Steel Buildings
Every clear span steel structure building is a precise response to specific requirements. As such, its design and manufacturing are by no means one-size-fits-all; rather, they must strictly comply with the national codes of the project’s location, adapt to unique climatic loads, and serve clearly defined building purposes.
Guided by this philosophy, Khome offers comprehensive, deeply customizable system solutions. From the primary structure to the building envelope, we present you with a diverse selection of modular options across our core components, ensuring that every building not only meets regulatory and safety requirements but also perfectly aligns with your functional and aesthetic expectations:
Steel structure buildings offer exceptional flexibility in dimensional customization—length, width, and height can all be tailored to specific project requirements without fixed numerical limitations.
Based on engineering practice, and provided that regulatory requirements are met, the typical dimensional ranges for single-story steel-structure industrial buildings are as follows:
| Parameter | Common size range | Remark |
|---|---|---|
| Span（width） | 12–36 m | light industrial applications：15–24 m； heavy industrial applications：30–36 m |
| Bay（column spacing） | 6–12 m | Factors Affecting the Cost-Efficiency of Roof Purlins and Crane Girders |
| Heigth | 6–12 m | Standard factory building：6–8 m； Factory building with large-scale equipment：10–12 m or higher |
| Length | 60–120 m or longer | The bay serves as the module, with extensions made in multiples thereof |
No single frame style suits every building. KHOME offers a diverse range of portal steel frame systems, including gable-frame clear-span, multi-span, and single-slope configurations, allowing you to select the ideal setup based on your specific requirements.
Which option should you choose? The answer depends on the building’s intended use, local environmental factors (such as wind, snow, and seismic loads), and whether overhead cranes or lifting equipment are required.
Based on these key variables, we will recommend the most cost-effective structural solution, ensuring an optimal balance between safety and economy.

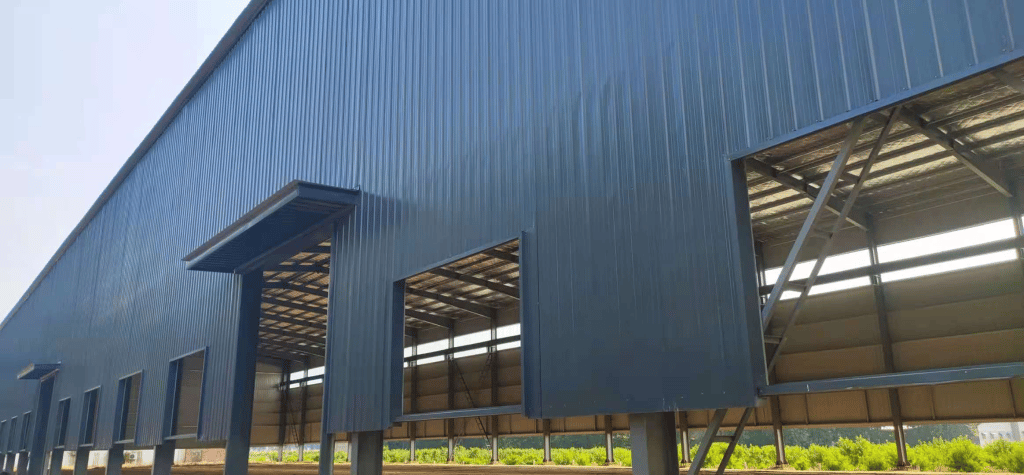

The Enclosure system is a core component of a steel structure building’s performance.
The choice of enclosure material ensures the thermal insulation performance of the entire building. We offer options including color steel panels and sandwich panels.
Color steel sheets come in a wide range of choices, allowing you to select from various colors and profiles.
If there are specific requirements for building insulation, sandwich panels are an excellent choice. We offer a variety of insulation core materials to meet the needs of different applications and conditions.
rock wool roof panel -
Polyurethane roof panel
EPS Roof panel
-
Polyurethane Wall Panel
Rock Wool Wall Panel
Roof System
The roof system is a core component of a steel structure building’s performance and primarily comprises the following parts:
- roof panel/Single steel board, this mainly based on the local temperature.
- Ventilator: it also has turbo and ridged ventilator 2 kinds.
- Sky light: this is mainly used to give more light.
- Water gutter: this is optional, the water gutter are popular used in rainy weather.
There are two common methods available for roof construction.

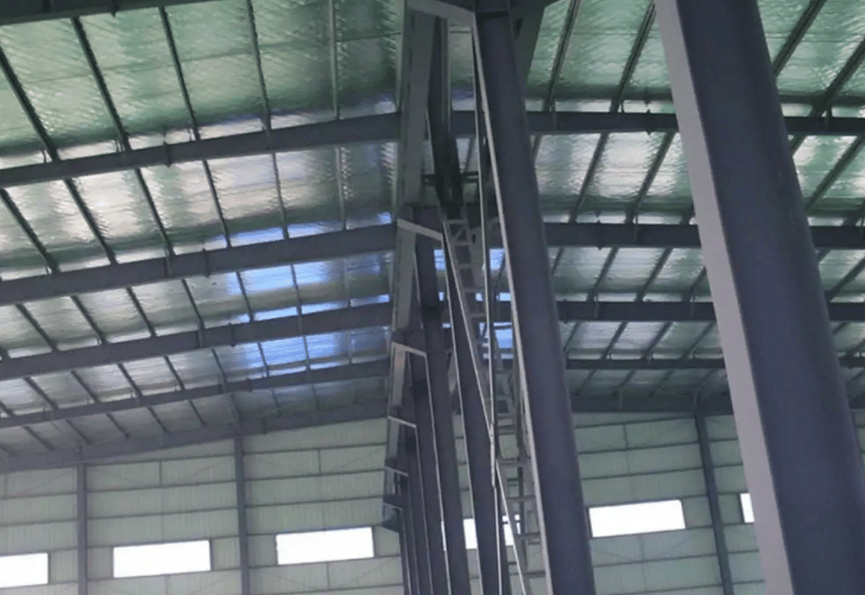

1: steel wire mesh + glass wool + color steel plate.This is the most common and most economical choice.
2: sandwich panels. If the entire building has specific thermal insulation requirements, sandwich panels are the most common choice.
Wall System
Wall panel/single steel plate: it is the same with the rood system.
Wall Treatment Method – Sandwich Panels-
Wall Treatment Method – color steel plate

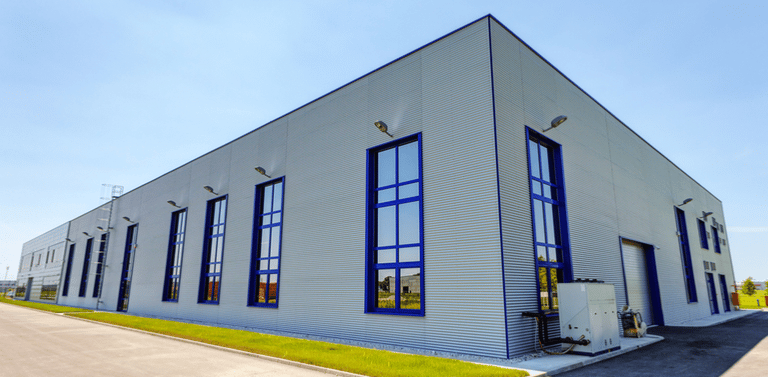

Windows and doors
We have different types of windows and doors. You can choose from our catalog, or we can help you design a special one.
customized clear span steel buildings according to your application
K-HOME’s clear span buildings have been successfully implemented in numerous countries and regions worldwide, including African markets such as Mozambique, Guyana, Tanzania, Kenya, and Ghana; the Americas such as the Bahamas and Mexico; and Asian countries such as the Philippines and Malaysia. We are familiar with diverse climate conditions and approval systems, enabling us to provide you with steel structure solutions that combine safety, durability, and economy.
Contact our customer service team today, and we will dedicate ourselves to creating a customized steel structure building perfectly suited to your needs.
If you provide the following information, we will provide you with a more accurate product quote.
WHY CHOOSE KHOME AS YOUR SUPPLIER？
K-HOME is one of the trusted factory manufacturers in China. From structural design to installation, our team can handle various complex projects. You will receive a prefabricated structure solution that best suits your needs.
You can send me a WhatsApp message (+86-18338952063), or send an email to leave your contact information. We will contact you as soon as possible.
1. Design
K-Home is a comprehensive company that can provide one professional design. From Architectural drawings, steel structure layout, the installation guide layout, etc.
Every designer in our team has at least 10 years of experience. You don’t have to worry about the unprofessional design affecting the safety of the building.
A professional design can help you save costs because we clearly know how to adjust and give you the most cost-effective solution, few companies will do this.

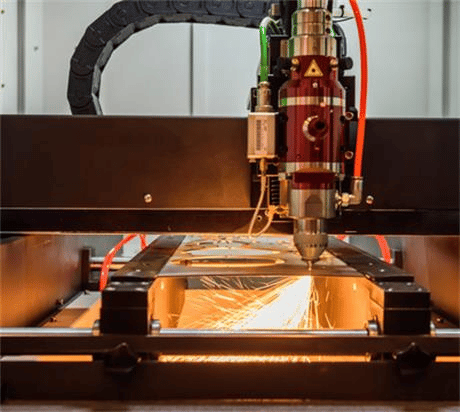

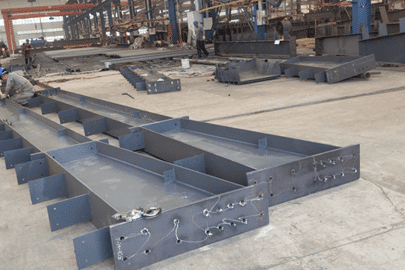

2. Manufacturing
Our factory has 2 production workshops with large production capacity and short delivery time. Generally, the lead time is around 15 days. All production is an assembly line, and each link is responsible and controlled by professional personnel. The important things are rust removal, welding, and painting.
Rust Remove: The steel frame uses shot blasting to remove the rust, reaching the Sa2.0 standard, Improve the roughness of the workpiece and the adhesion of the paint.

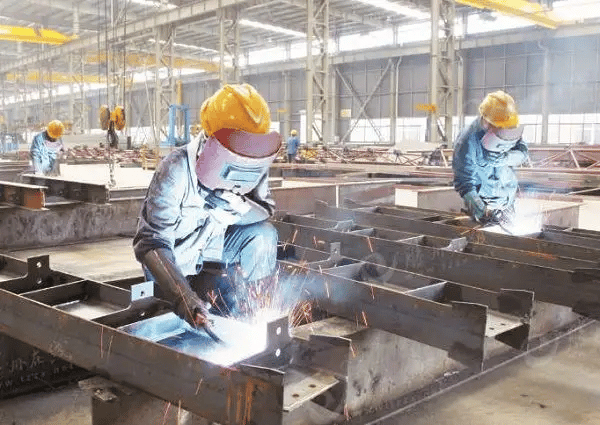

Welding: welding rod we choose is a J427welding rod or J507welding rod, they can make welding seam without defects.
Painting: The standard color of the paint is white and gray(customizable). There are 3 layers in total, the first layer, the middle layer, and the face layer, the total paint thickness is around 125μm~150μm based on the local environment.
3. Mark and Transportation
K-Home attaches great importance to mark, transportation, and packaging. Although there are many parts, in order to make you clear and reduce the site work, we mark each part with labels and take photos.
In addition, K-Home has rich experience in packing. the packing location of the parts will be planned in advance and the maximum usable space, as far as possible to reduce the number of packings for you and reduce the cost of shipping.

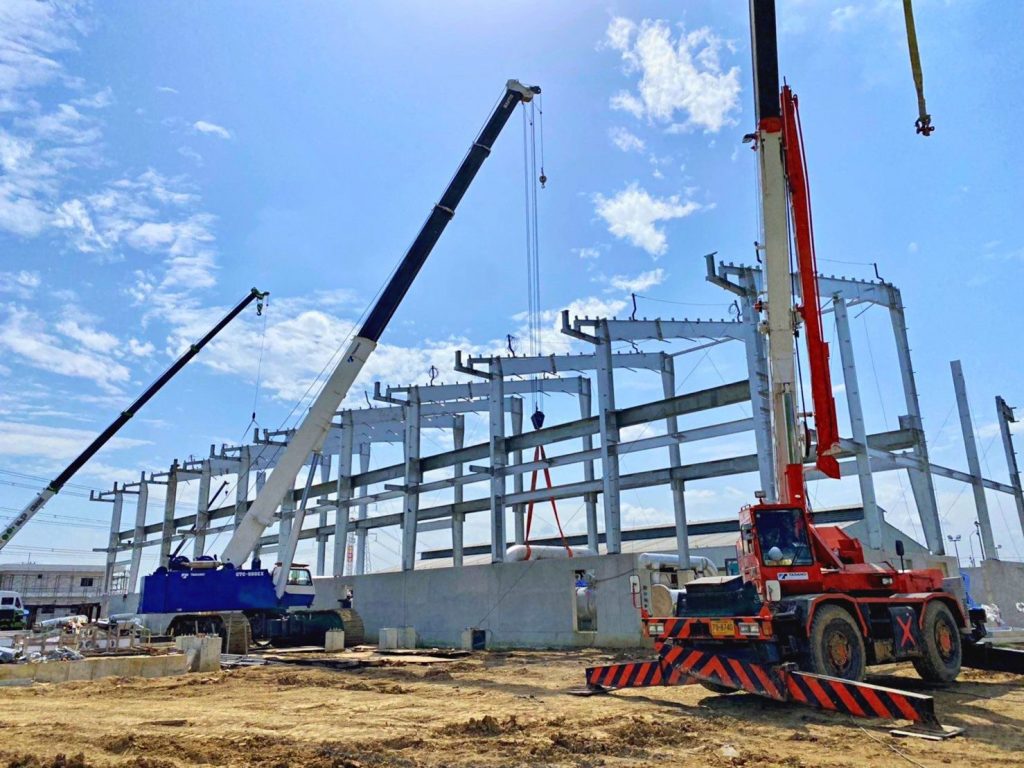

4. Detailed Installation Service
Before you received the cargo, a full set of installation files will be sent to you. You can download our sample installation file below for your reference. There are detailed house parts sizes, and marks.
Also, If this is the first time you to install the steel building, our engineer will customize a 3d installation guide for you. You don’t need to worry about the installation.
Qualifications & Certifications
Common Applications of Clear Span Metal Buildings

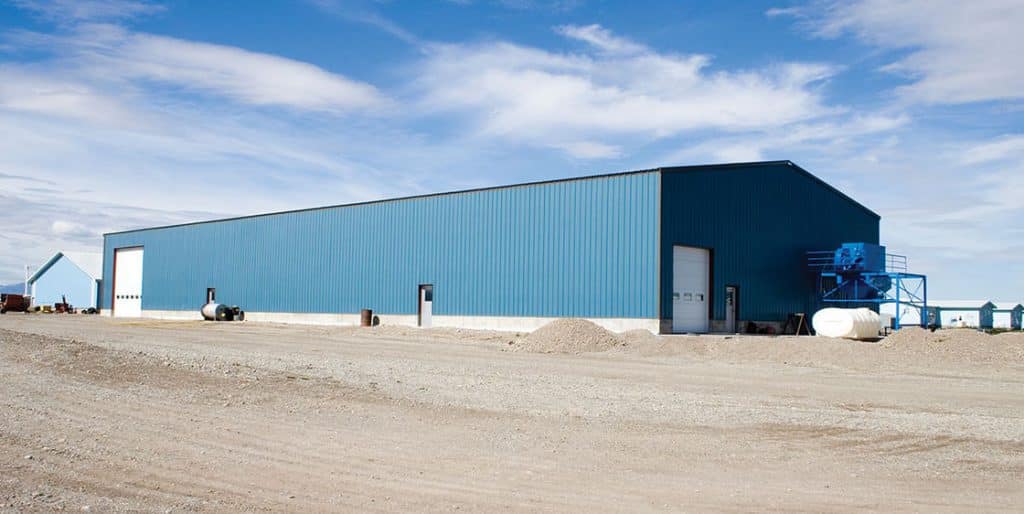

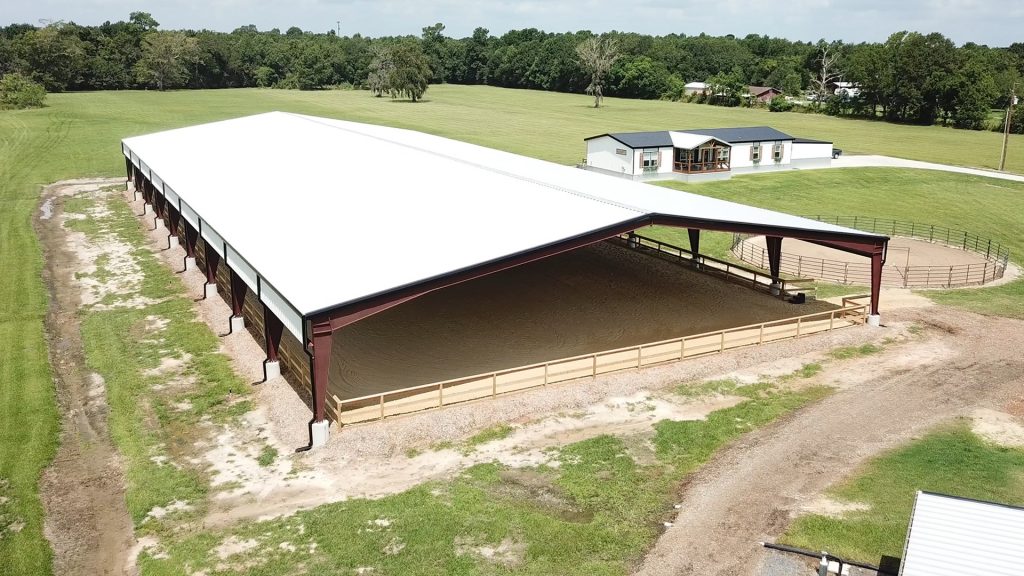

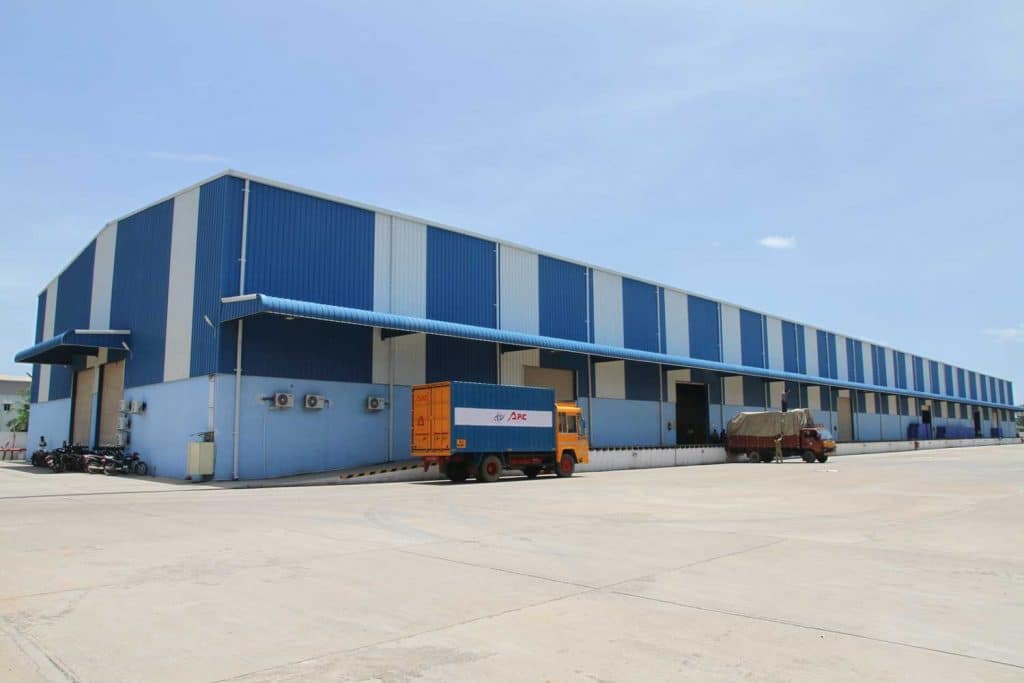

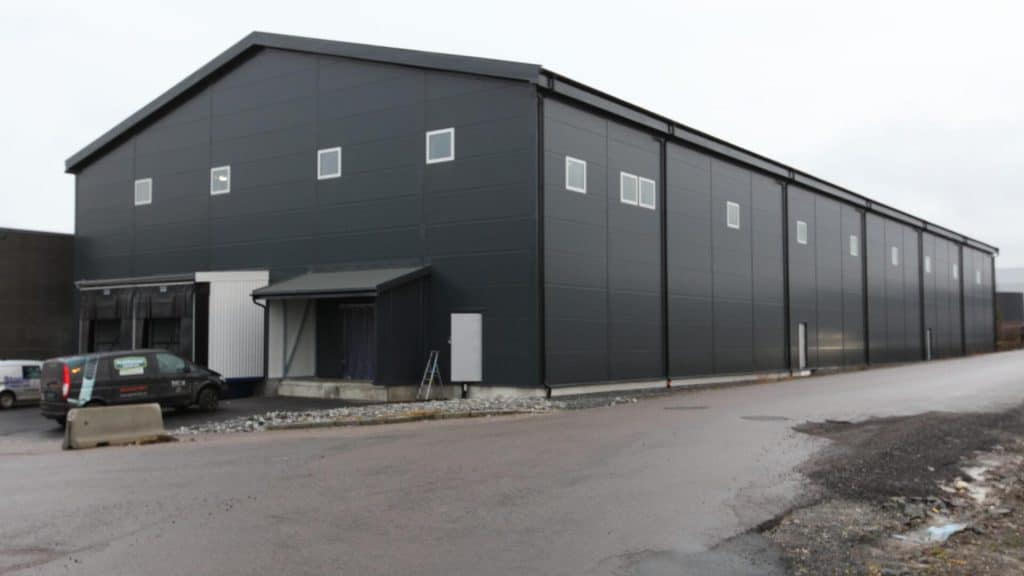

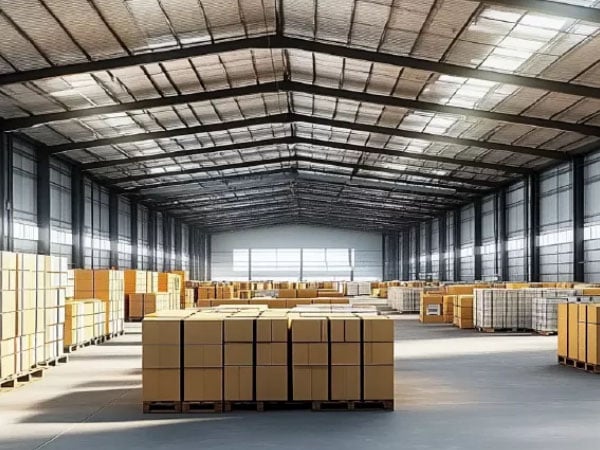

Clear span metal buildings have a wide range of applications, covering multiple fields such as industry, commerce, agriculture, and public facilities. They are frequently utilized in industries and warehouses to provide open area for manufacturing and storage.

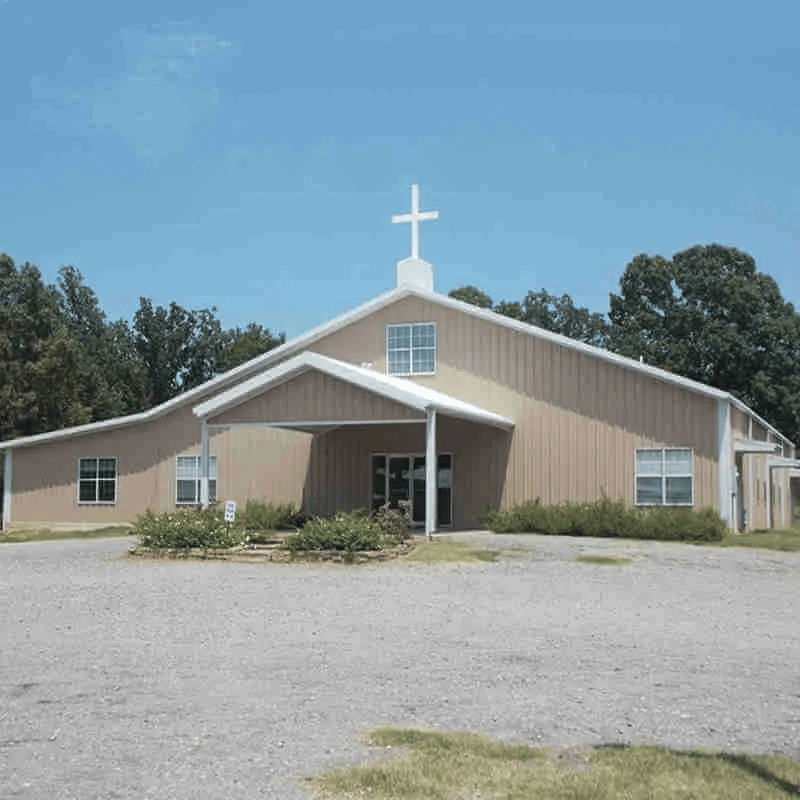

Clear Span Buildings may enable variable layouts and be used as retail shops or exposition centers in commercial settings.

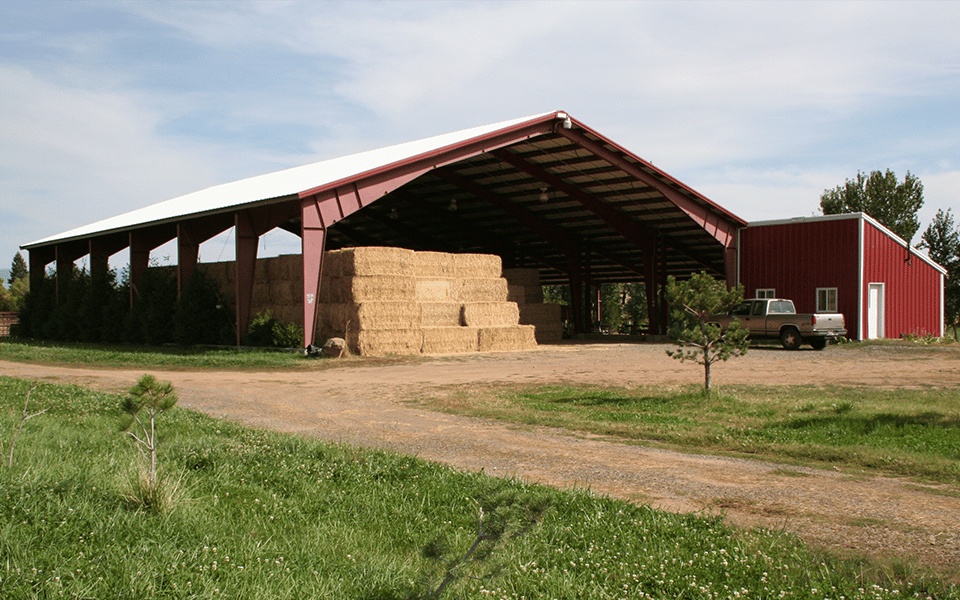

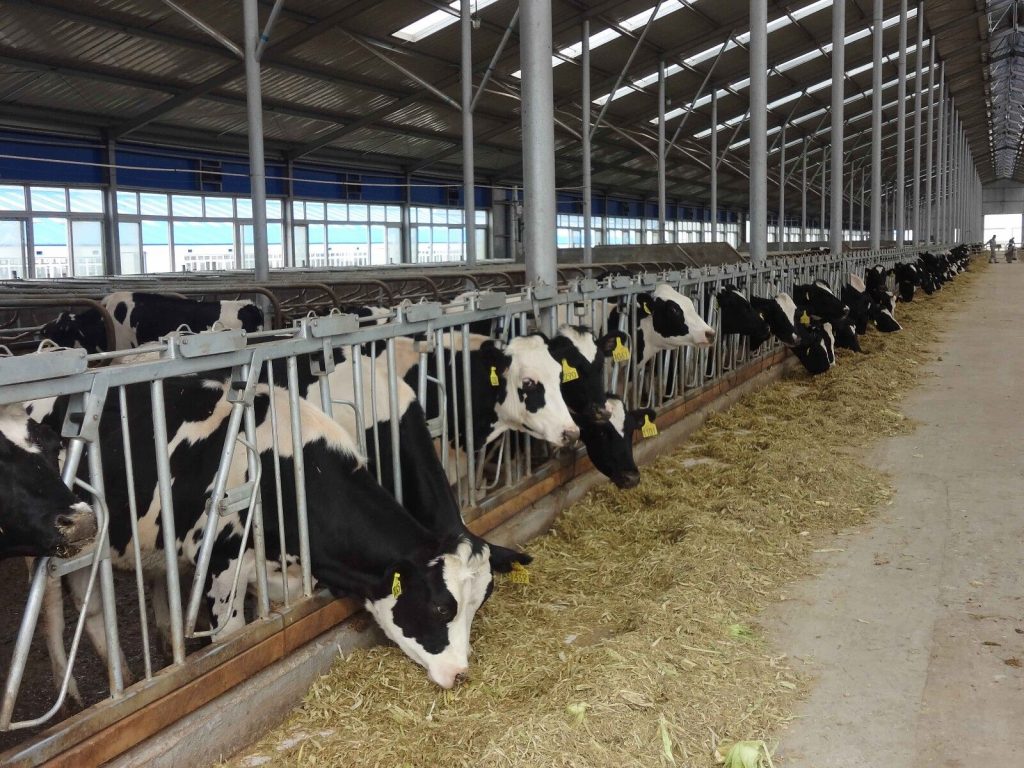

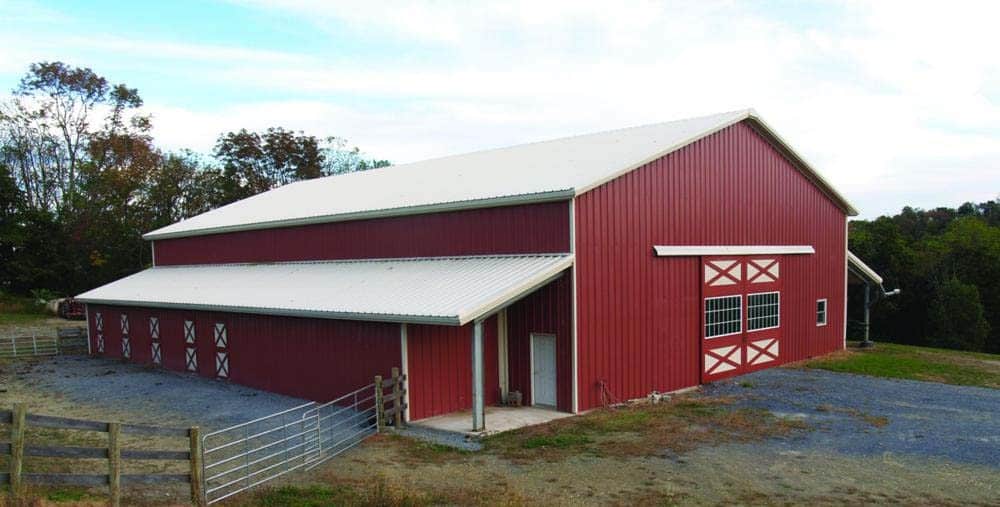

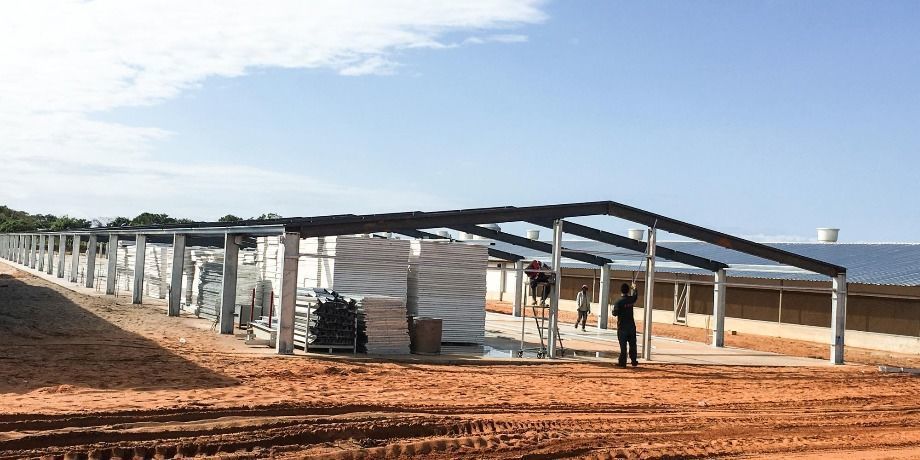

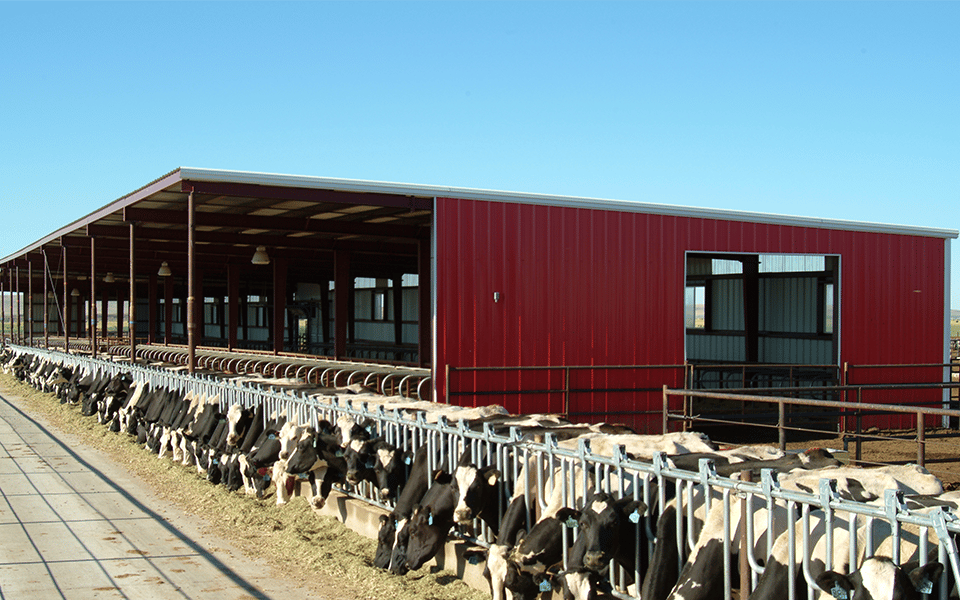

It is utilized in livestock buildings and greenhouses in agriculture to maximize the conditions for planting and breeding. These structures’ versatility is further demonstrated by the fact that they may serve as hangars, sports arenas, and emergency shelters.
Cost-effective clear span steel structure kit models
The cost of clear span steel buildings
In the field of steel structure building, price is a primary concern for every client. However, due to the diversity and complexity of steel structure projects, prices are not fixed. K-home, a company with multiple qualifications and years of construction experience, is committed to providing clients with one-stop quotation services, ensuring that every client receives the most reasonable price.
The cost of steel structure engineering is influenced by various factors, including but not limited to the following:
- Project Scale: The size and complexity of the project directly affect the price. Large and complex projects require more manpower, resources, and time, thus resulting in relatively higher prices.
- Material Costs: The cost of materials such as steel, connectors, and paint is also a significant component of the price quote. Different brands and specifications of materials have significantly different prices; therefore, selecting materials suitable for the project is crucial for cost control.
- Construction Period: The length of the construction period also affects the price. Urgent projects may require more resources, thus increasing costs.
- Geographical Location: Factors such as construction costs and labor prices in different regions also influence the price quote.
K-HOME boasts a professional technical and construction team, providing clients with integrated engineering solutions from planning, design, construction to maintenance. Our quotation service includes the following steps:
- Needs Analysis: Understanding the client’s specific needs and project requirements, including project scale, structural form, and material requirements.
- Solution Design: Providing multiple feasible solutions based on the client’s needs and conducting a detailed cost analysis.
- Quotation Calculation: Providing a detailed quotation list based on the solution design and cost analysis, ensuring that every cost is clear and transparent.
- Contract Signing: After both parties reach an agreement, a formal construction contract is signed, clearly defining the scope of work, price, construction period, and other terms.
FAQs ABOUT CLEAR SPAN BUILDINGS
In pre-engineered building industry, it has clear span and standard span 2 types, Please check the following picture:
When you need a larger space without internal columns, the clear span building is most suitable, similar with clear span building, standard span builing are engineer to serve your need when need many funcinal rooms, pls check the following difference introduction:
Prefabricated clear span steel building means that there is no intermediate column between two wall columns to bear the force. Standard span building means that one or more pillars are required between the wall columns to bear the force.
Therefore, the clear span metal building need huge and sturdy wall columns provide strength and durability, while the standard span steel structure consists of multiple small, weakly supporting columns to provide strength and durability.
Steel frame building price is around $120 per square meter. But according to the different span and material, the price will vary based on them. The price is transparent, what we earn is the industry standard profit, and we also come with a lot of services, free design, to help you save costs, and our products also has Loss, management fees, storage fees, labor cost.
Related Buildings

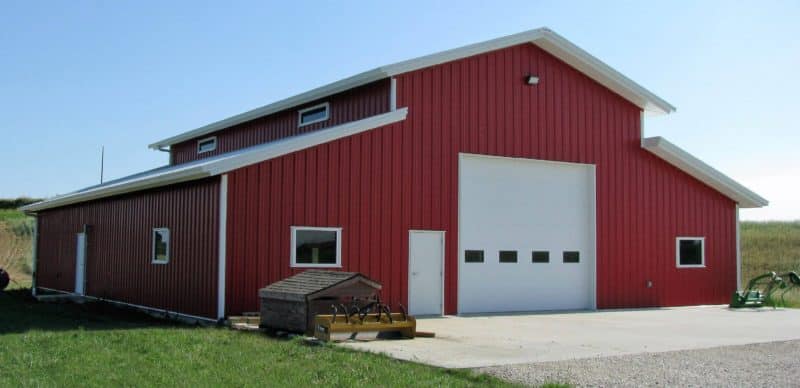

Metal Building Homes
Metal Building Homes Steel Structure Building “Keeping up with the times” became a buzzword more than a decade…Steel Manufacturing Building
Steel Manufacturing Building Industrial / Agricultural / Commercial Steel Buildings Steel Manufacturing Building is a new type of…Prefab Steel Shed Buildings
Prefab Steel Shed Buildings Usage: Great for storing grain, fertilizer, equipment, feed, hay, Racecourse, and cowshed. Prefab Steel…Prefab Steel Structure Warehouse Building

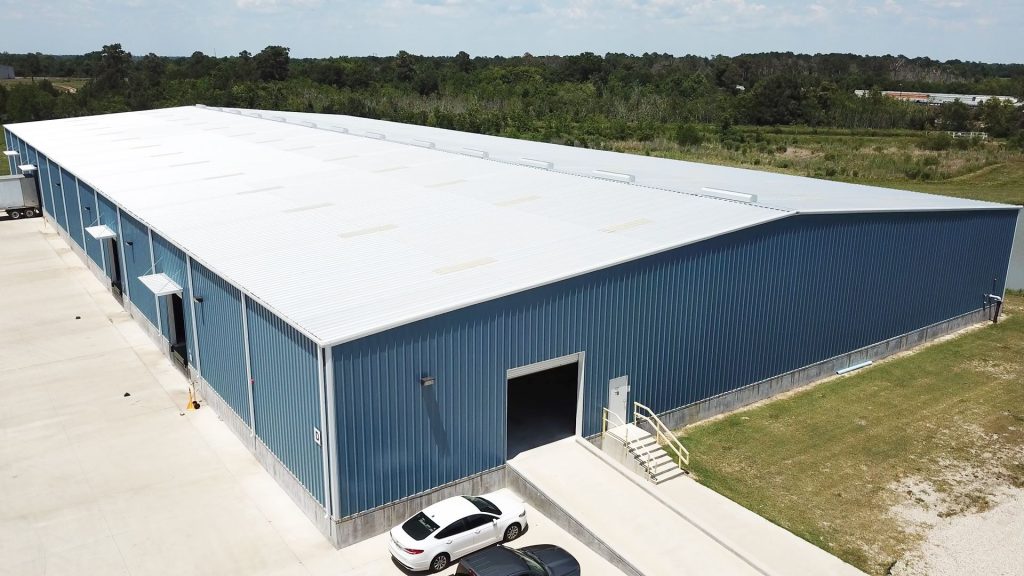

Prefab Steel Structure Warehouse Building Prefabricated warehouse | Steel warehouse | Metal warehouse Prefab Steel structure warehouse building…
